Está é apena uma das muitas maneiras de customizar um elemento do tipo #checkbox com o #bootstrap



Código completo;



<!doctype html>
<html lang="pt-br">

<head>
 <meta charset="utf-8">
 <meta name="viewport" content="width=device-width, initial-scale=1">
 <title>Bootstrap demo</title>
 <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.1/dist/css/bootstrap.min.css" rel="stylesheet" integrity="sha384-4bw+/aepP/YC94hEpVNVgiZdgIC5+VKNBQNGCHeKRQN+PtmoHDEXuppvnDJzQIu9" crossorigin="anonymous">

 <style media="screen">
 .circle_example {
 width: 50px;
 height: 50px;
 border-radius: 50%;
 padding: 10px;
 text-align: center;
 border: solid 1px #ccc ;
 }
 </style>
</head>

<body>

 <div class="container">
 <div class="row mb-3">
 <div class="col-12">
 <h1 class="display-5 text-center bg-light my-3 py-3">Checkboxes cutomizados com bootstrap 5</h1>
 <hr>
 </div>
 </div>
 <form class="" action="post.php" method="post">
 <div class="row" id="box_checkboxes">
 <div class="col">
 <label for="input_chk_1" class="d-block p-3 rounded shadow h-100">
 <input data-class="bg-warning" checked type="checkbox" id="input_chk_1" name="input_chk_1" value="1" class="chk_custom" /> bg-warning example
 </label>
 </div>

 <div class="col">
 <label for="input_chk_2" class="d-block p-3 rounded shadow h-100">
 <input data-class="bg-success" type="checkbox" id="input_chk_2" name="input_chk_2" value="2" class="chk_custom" /> bg-success example
 </label>
 </div>

 <div class="col">
 <label for="input_chk_3" class="d-block p-3 rounded shadow h-100">
 <input checked data-class="bg-info" type="checkbox" id="input_chk_3" name="input_chk_3" value="3" class="chk_custom" /> bg-info example
 </label>
 </div>

 <div class="col">
 <label for="input_chk_4" class="d-block p-3 rounded shadow h-100">
 <input data-class="border border-success" type="checkbox" id="input_chk_4" name="input_chk_4" value="4" class="chk_custom" /> bg-info example
 </label>
 </div>
 <div class="col-12">
 <div class="row mt-3 text-center">
 <div class="col">
 <label for="input_chk_5" class="circle_example" id="input_chk_5_label">
 <input data-hidden-chk="true" data-class="border border-success" type="checkbox" id="input_chk_5" name="input_chk_5" value="5" class="chk_custom" /> 1
 </label>
 </div>
 <div class="col">
 <label for="input_chk_6" class="circle_example" id="input_chk_6_label">
 <input data-hidden-chk="true" data-class="bg-success text-white fw-bolder" type="checkbox" id="input_chk_6" name="input_chk_6" value="5" class="chk_custom" /> 10
 </label>
 </div>
 <div class="col">
 <label for="input_chk_7" class="circle_example" id="input_chk_7_label">
 <input data-hidden-chk="true" data-class="bg-danger text-white fw-bolder" type="checkbox" id="input_chk_7" name="input_chk_7" value="5" class="chk_custom" /> M
 </label>
 </div>
 <div class="col">
 <label for="input_chk_8" class="circle_example" id="input_chk_8_label">
 <input data-hidden-chk="true" data-class="bg-dark text-white fw-bolder" type="checkbox" id="input_chk_8" name="input_chk_8" value="5" class="chk_custom" /> BO
 </label>
 </div>
 </div>
 </div>
 </div>
 <div class="row mt-3">
 <div class="col-12">
 <input class="btn w-100 btn-success" type="submit" name="" value="Salvar">
 </div>
 </div>
 </form>
 </div>
 <script type="text/javascript">
 let divPai = document.getElementById('box_checkboxes');

 divPai.addEventListener('change', function(e) {
 let hasClass = e.target.classList.contains('chk_custom');
 if (e.target.type === 'checkbox' && hasClass) {
 toggleCheckboxBackground(e.target);
 }

 });

 function renderCheckboxes() {
 const checkboxes = document.querySelectorAll('#box_checkboxes input[type="checkbox"]');
 checkboxes.forEach((item, i) => {
 toggleCheckboxBackground(item);
 });
 }

 function toggleCheckboxBackground(checkbox) {

 const parentElement = checkbox.parentElement;
 const classParentElement = checkbox.getAttribute('data-class').split(' ');
 let isHidden = (checkbox.getAttribute('data-hidden-chk') == 'true');
 console.log(isHidden);

 parentElement.classList.add(...classParentElement);

 if (isHidden) {
 checkbox.style.display = 'none';
 }

 if (!checkbox.checked) {
 parentElement.classList.remove(...classParentElement);
 }
 }

 document.addEventListener("DOMContentLoaded", function(event) {
 renderCheckboxes();
 });

 </script>
 <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.1/dist/js/bootstrap.bundle.min.js" integrity="sha384-HwwvtgBNo3bZJJLYd8oVXjrBZt8cqVSpeBNS5n7C8IVInixGAoxmnlMuBnhbgrkm" crossorigin="anonymous"></script>
</body>

</html>

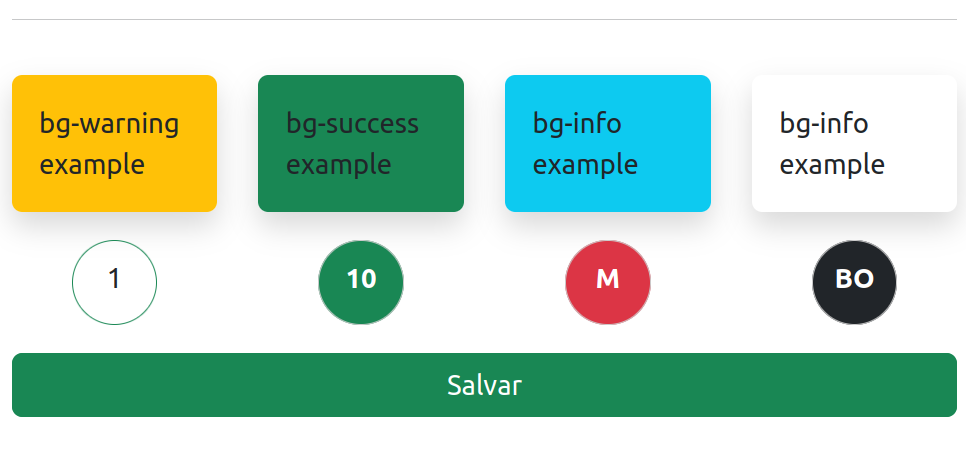

Para esconder o elemento uma dica é utilizar o data-hidden-chk="true"
